Happys How To: Installing a 4-Prong Electrical Cord on a Range

4.14.23

A Step-by-Step Guide with Safety Tips

If you're looking to replace the electrical cord on your electric range with a 4-prong cord, it's important to have the proper tools and knowledge to do so safely. Installing a 4-prong electrical cord on an electric range may seem daunting, but with the right instructions, it's a relatively simple process. Here's a step-by-step guide to help you through the process:

Step 1:

Turn off the power to the electric range by unplugging it or turning off the circuit breaker.

Step 2:

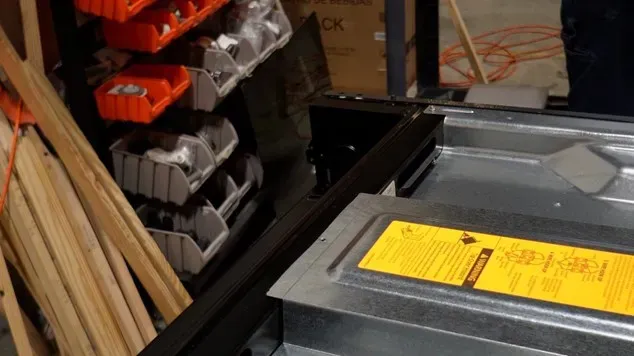

Locate the terminal block, which is typically found on the back of the electric range.

Step 3:

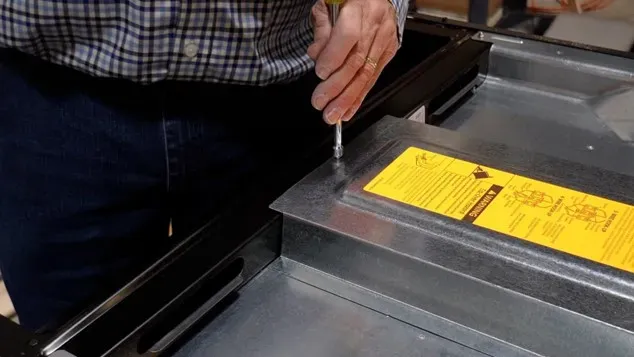

Unscrew the terminal block cover and remove it.

Step 4:

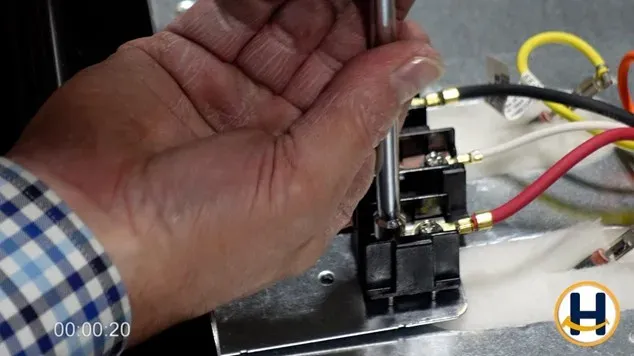

Take the 4-prong cord and attach the red wire to the top left terminal (usually labeled "X"), the black wire to the top right terminal (usually labeled "L1"), the white wire to the bottom left terminal (usually labeled "N"), and the green wire to the bottom right terminal (usually labeled "GND" or "GRN").

Step 5:

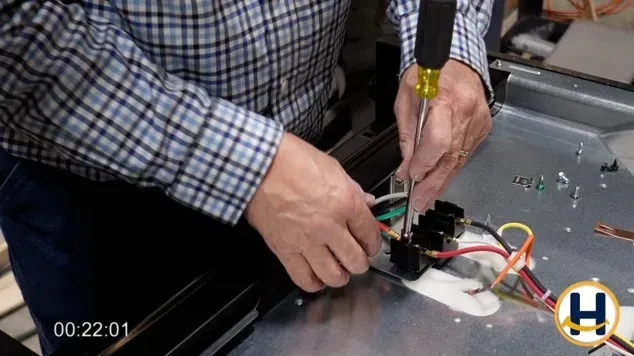

Tighten the terminal screws to secure the wires in place.

Step 6:

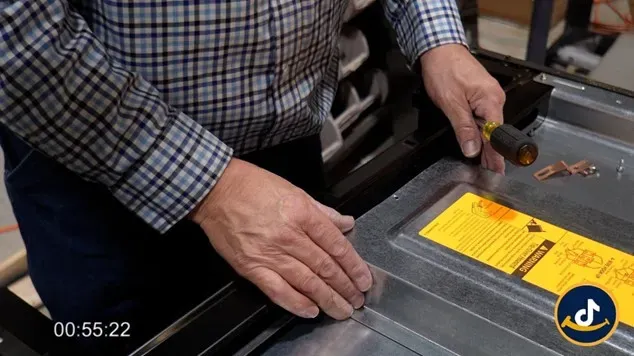

Replace the terminal block cover and screw it back in place.

Step 7:

Finally, turn the power back on to the electric range and test it to make sure it's working properly.

Safety Tips:

• Always wear protective gear such as rubber-soled shoes, safety glasses, and gloves to protect yourself from electrical hazards.

• Make sure you have the proper tools for the job, such as a screwdriver, wire stripper, and pipe wrench.

• Check the voltage and amperage requirements of your dryer and ensure that the cord you purchase meets those requirements.

• Make sure the green wire is properly connected to the dryer as it is the ground wire which is important for safety.

• If you notice any unusual noises or the dryer isn't functioning correctly, unplug it and seek help from a professional electrician.

It's important to note that while these instructions provide a general overview of the process, the specifics of installing an electrical cord on an electric range may vary depending on the make and model of your appliance. You should always consult the manufacturer's instructions for specific instructions and safety information before attempting to install an electrical cord.

By following these steps and taking the necessary safety precautions, you can install a 4-prong electrical cord on your electric range with confidence. Remember, if you're unsure about any aspect of the installation process, or not comfortable with electrical work, it is best to seek help from a professional electrician. They will have the necessary skills and experience to ensure that the installation is done safely and meets local codes and regulations.It's also important to note that 4-prong cords are typically required by code in newer homes and construction. This is because they have an additional ground wire which helps to provide more protection against electrical hazards.
